GREEN CTP Pack

Easy Maintenance & Eco-Friendly

High Performance, Powered by Wending® Tech

Wide Temperature Tolerance

Application: BEV

Cell Chemistry：LiFePO4

Get Customized Solutions

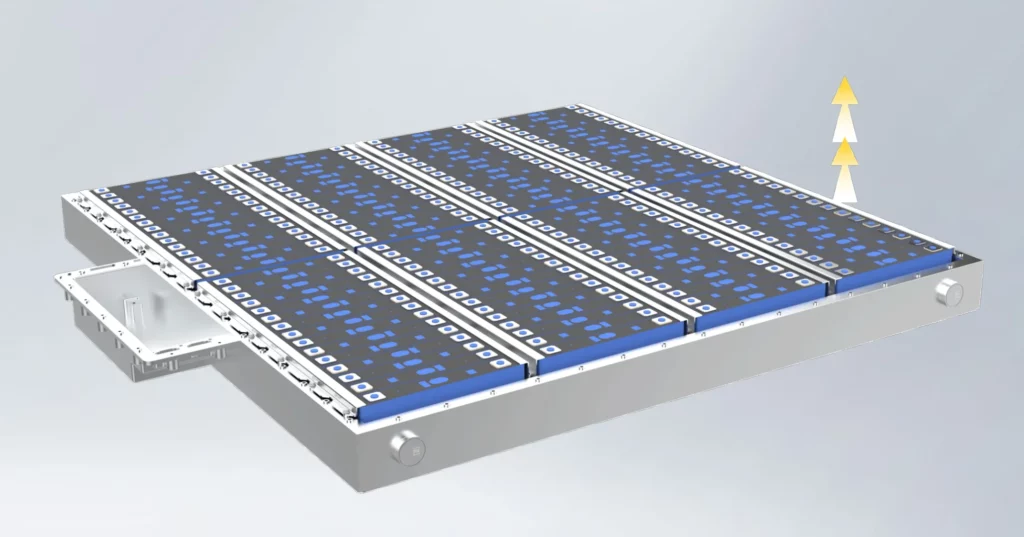

An Environment-Friendly CTP Solution

High Package Efficiency

· High integration
· High manufacturing efficiency

Single Cell Changeable

· Secondary utilization
· Easy maintenance

REPT BATTERO’s GREEN CTP battery pack technology has been further refined on the basis of the upgraded structure to solve the problems of traditional CTP battery packs in the market, such as the difficulty of after-sales maintenance, high after-sales maintenance cost, and potential environment contamination. REPT BATTERO GREEN CTP battery packs are equipped with cells that are fixed mechanically instead of glued, making single cells replaceable, making after-sales maintenance easier and lowering after-sales maintenance costs. At the same time, the battery can be reused from the cell to the whole packthe battery can be reused from the cell to the whole pack, which is more environmentally friendly.

Enhanced by Wending® technology, GREEN CTP battery packs offer excellent performance to meet the demands of different vehicle models. The 67.6kWh GREEN CTP battery pack, for example, has an energy density of 145Wh/kg in LFP chemistry, with a range of over 500km, and can be replenished from 10% to 80% within 16min. In addition to long range and ultra-fast charging, this battery pack has excellent temperature adaptability and can operate from -30°C to 60°C.

Specifications

Items	Technical Indicators
Cell Chemistry	LiFePO4 (LFP)
Energy (kWh)	67.62@1/3C
Dimensions (mm)	1380.361347.76146.41
Operating Voltage Range (V):	300-438
Nominal Voltage (V)	386.4@1/3C
Charging Time (Minimum @10–80% SOC)	16
Peak Charging Power (kW)	192@25°C,10s, SOC50%
Peak Discharging Power (kW)	468@25°C,10s, SOC50%
Thermal Management	Liquid cooling
IP Rating	IP68
Connection Mode	Quick Plug Capability
Communication Protocol	CAN
Operating Temperature (°C)	-30~60
Battery Capacity (Ah)	175@1/3C
Battery Nominal Voltage (V)	3.22@1/3C
Battery Energy Density (Wh/kg)	185@1/3C
Battery Dimensions (mm)	40300112
Application Fields	BEV
